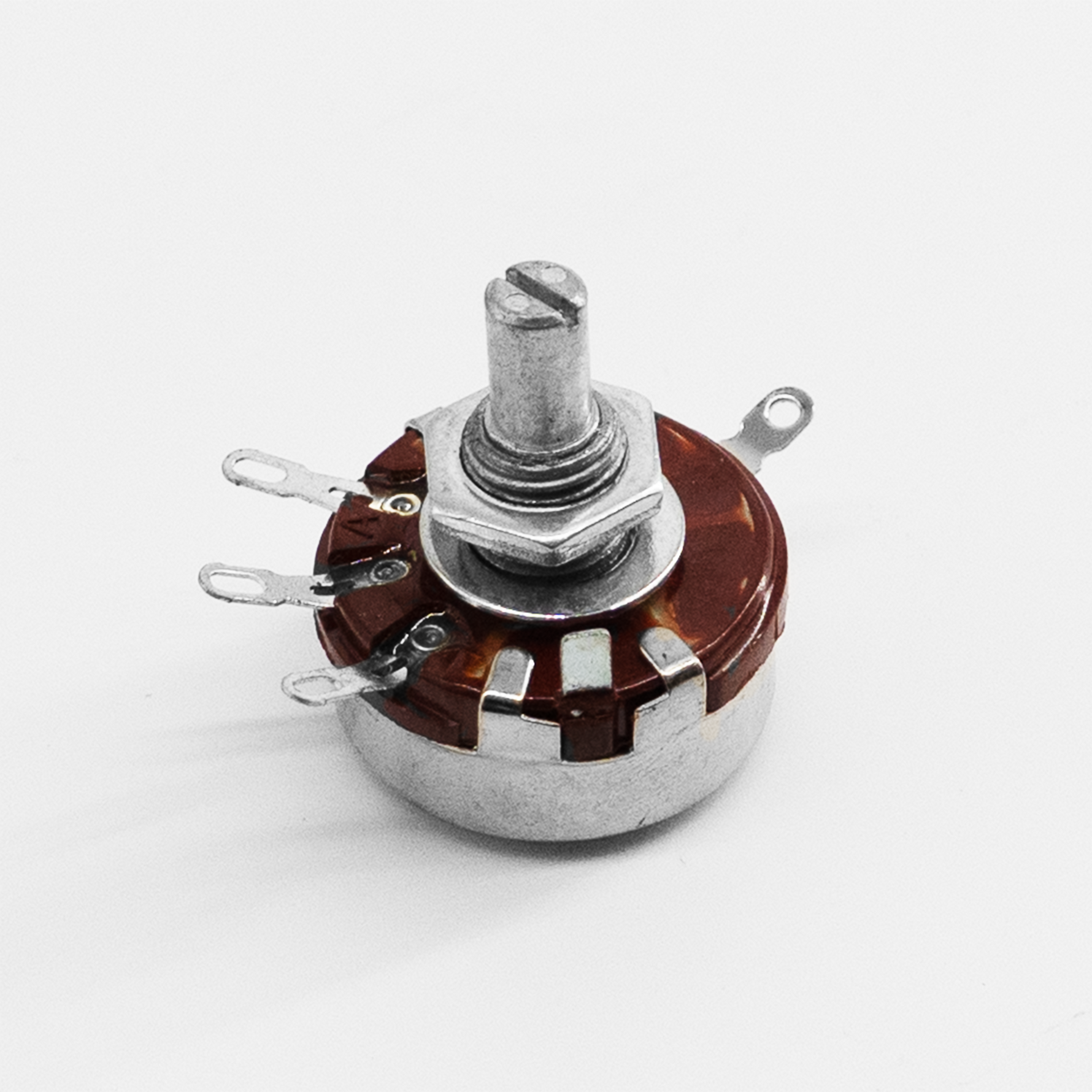

WH116-1 Potentiometer 2W 220K for CBS Series

The WH116-1 Potentiometer is a high-precision, rotary variable resistor designed to offer smooth and reliable adjustment of electrical signals in control circuits. Rated at 220K ohms and 2 watts, this component is ideal for voltage regulation, speed control, and temperature tuning functions within CBS Series continuous band sealers.

Key Features:

• Resistance Rating: 220KΩ – suitable for fine-tuning signal levels and feedback loops.

• Power Rating: 2 Watts – capable of handling moderate power loads in industrial control systems.

• Rotary Shaft Design: Allows for precise manual adjustment of resistance through smooth rotation.

• Multiple Solder Terminals: Three-terminal configuration enables versatile installation in voltage divider or variable resistor modes.

• Durable Housing: Encased in a rugged metal body with bakelite insulation for excellent heat and arc resistance.

• Mounting Hardware Included: Comes with pre-installed lock washer and nut for secure panel mounting.

Applications:

• Used in CBS Series band sealers for speed regulation of conveyor motors and temperature control in heater assemblies.

• Also applicable for analog signal tuning in other industrial control equipment.

Benefits:

• Provides consistent and reliable control over machine parameters.

• High resistance value allows for wide range modulation.

• Sturdy construction ensures long operational life in industrial environments.

• Simple installation into control panels or circuit boards.

Compatible with:

• E-CBS-630
• E-CBS-630-D
• E-CBS-730
• E-CBS-730-D
• E-CBS-730-D-N
• E-CBS-730-D-L-R
