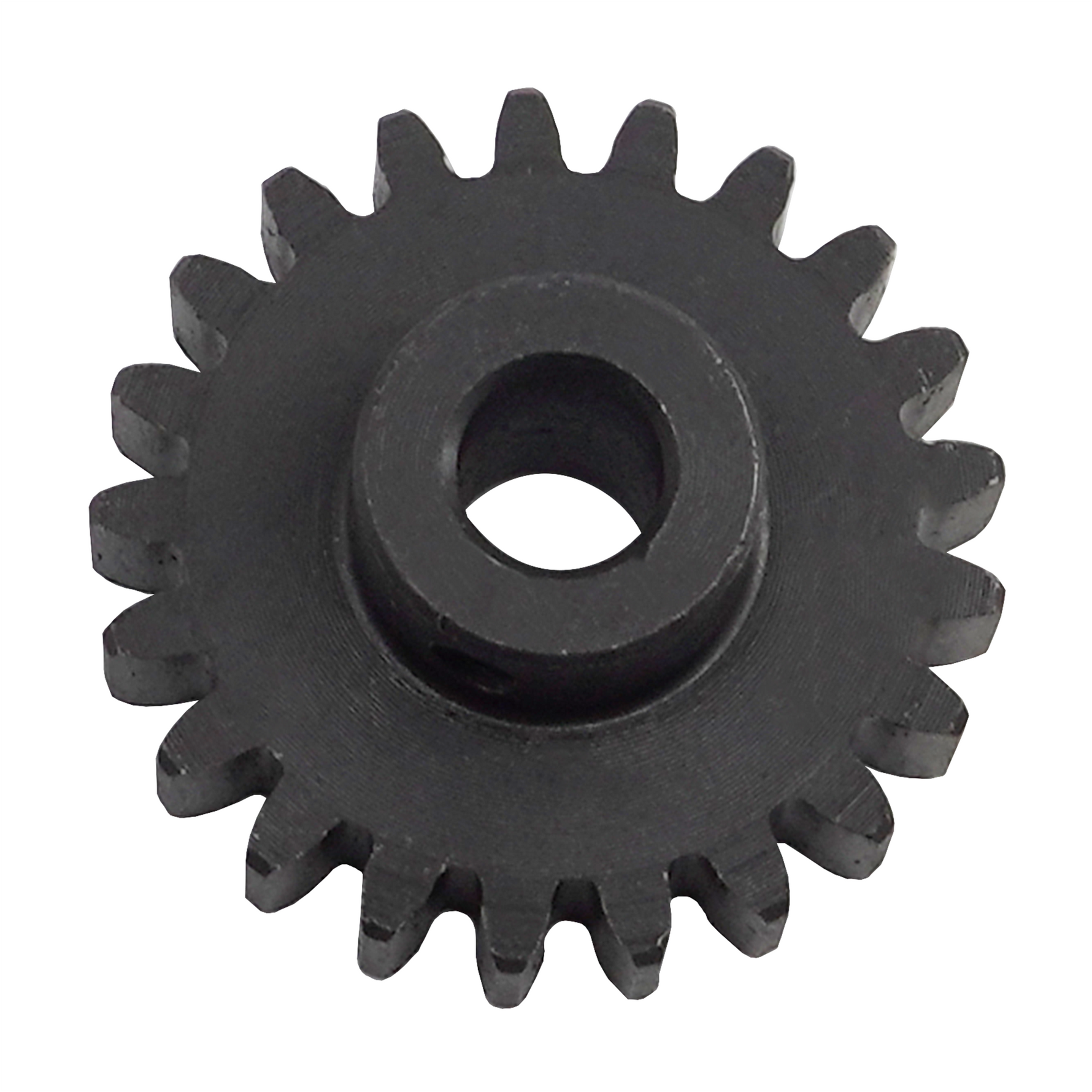

Pressing Roller Driving Gear of E-CBS-1010 Series

The Pressing Roller Driving Gear is a high-precision spur gear designed for power transmission within the E-CBS-1010 Series continuous band sealing machines. This gear plays a key role in synchronizing the movement of the pressing rollers, ensuring even pressure and consistent sealing quality across the product surface.

Key Features:

• Hardened Steel Construction: Engineered from high-strength, heat-treated steel to withstand repetitive stress and torque under high-speed sealing operations.

• Black Oxide Coated: The surface is treated with black oxide to enhance corrosion resistance and minimize wear, ideal for industrial environments.

• Precision-Cut Gear Teeth: Uniformly machined spur teeth ensure smooth and efficient meshing with mating gears, reducing noise and transmission loss.

• Hub with Bore and Set Screw Port: Features a central bore compatible with standard drive shafts and includes a threaded port for a set screw to securely lock the gear in position.

Applications:

• Specifically designed for use in E-CBS-1010 Series band sealing machines

• Drives the pressing roller assembly in conjunction with motor or reducer gears

• Ideal for synchronized, high-speed sealing operations in packaging machinery

Technical Specifications:

• Material: Hardened carbon steel

• Finish: Black oxide

• Gear Type: Spur gear

• Teeth: 21

• Mounting: Hub bore with set screw capability

• Compatibility: E-CBS-1010 series pressing roller drive system

Benefits:

• Delivers reliable and efficient torque transmission to pressing rollers

• Maintains consistent product feed and seal quality

• Long service life with reduced maintenance needs
